Ford Tourneo Connect III Compact MPV 1.5 AMT (1498 cm³, 114 hp, 95, Robotic)
General information
1833
1855
4853
Brand
Ford
Model
Tourneo Connect
Vehicle class
M
Body type
Compact MPV
Doors
5

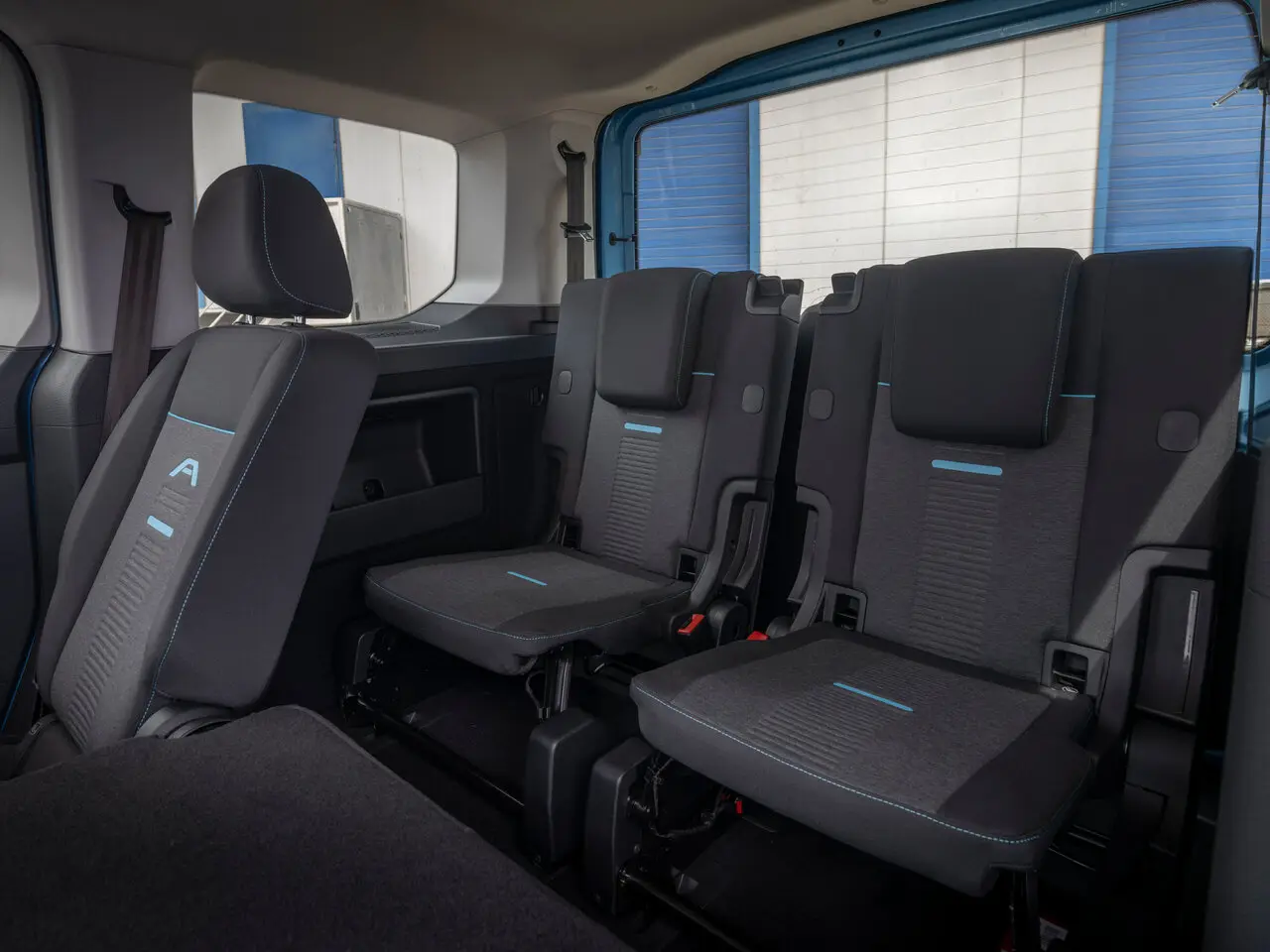

Seats
5, 7
Width
1,855 mm
Length
4,853 mm
Height
1,833 mm
Wheelbase
2,970 mm
Trunk
650 l
Maximum amount of Luggage
3,105 l
Ground clearance
144 mm

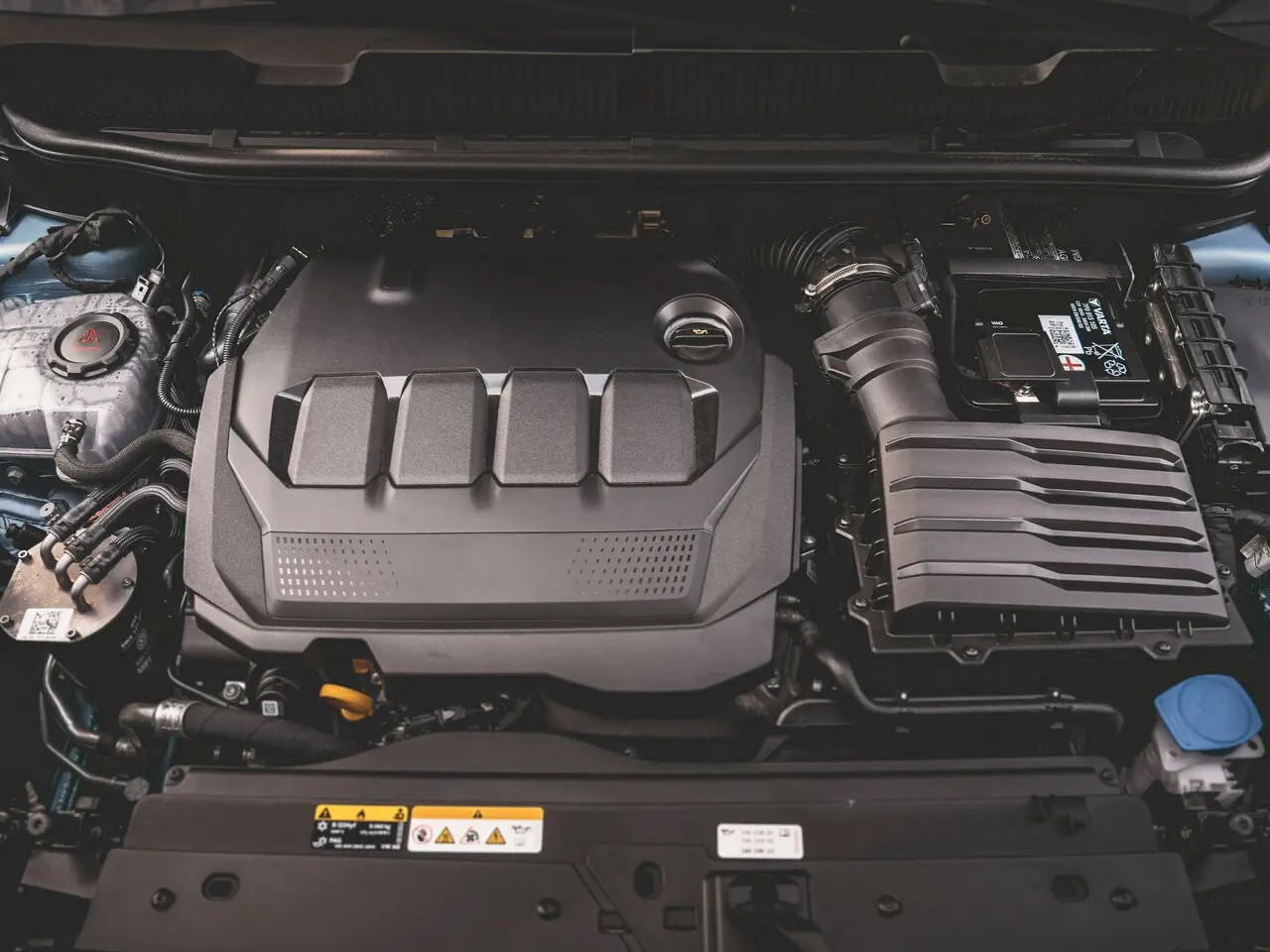

Engine
Engine position
Front, transverse
Engine capacity
1498 cm³
Power
114 hp
Power, kW
114 kW
Torque
220 Nm
Fuel injection
Direct injection (direct)
Boost
Turbocharging
Cylinder arrangement
Inline
Number of cylinders
4
Valves per cylinder
4
Fuel type
95
Bore and stroke
74.5x85.9 mm
Compression ratio
12.5
CO2 Emissions, g/km
151 g/km
Emission standard
Euro 6
Suspension
Front suspension
Independent, spring
Rear suspension
semi-independent, spring

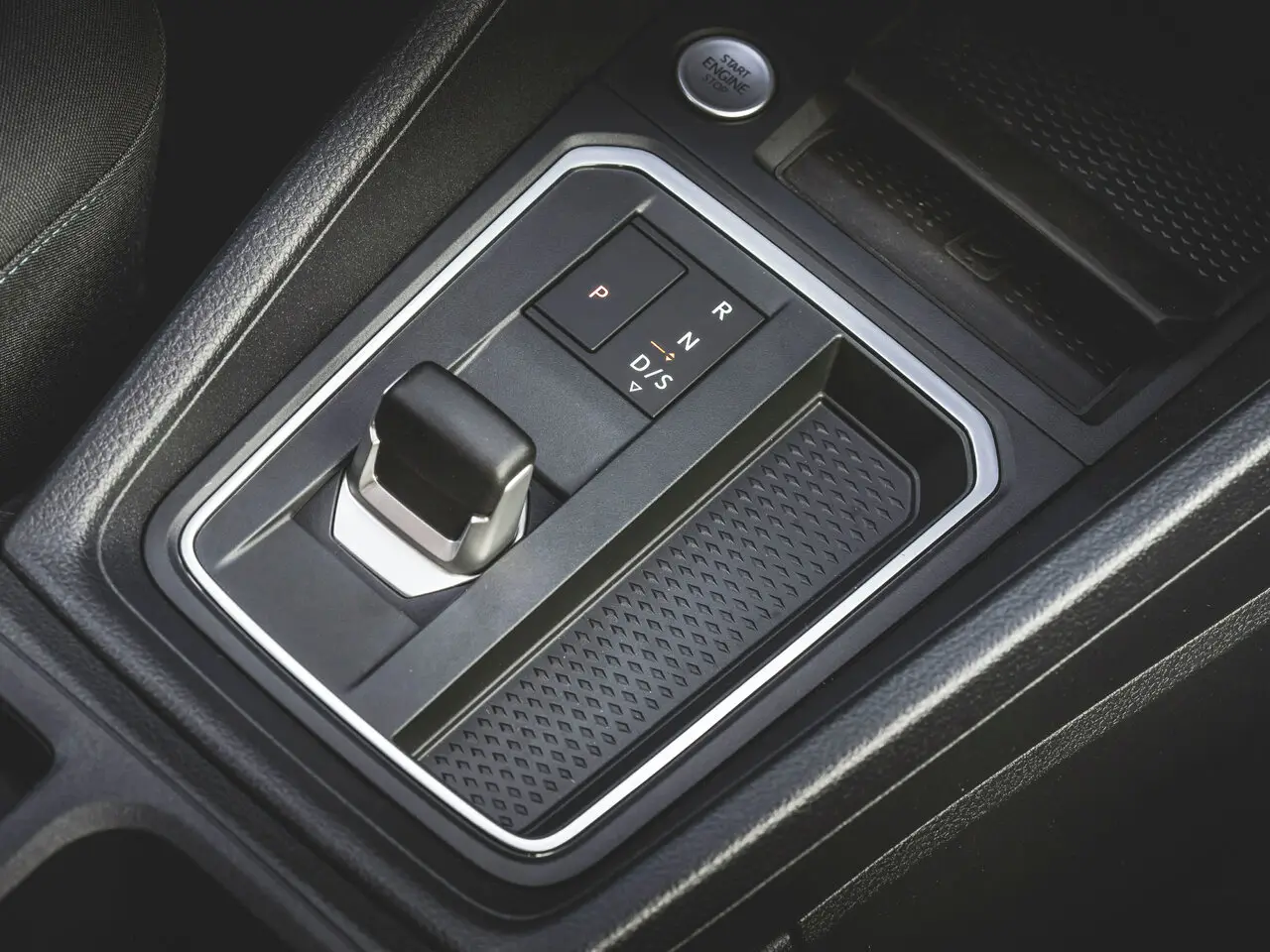

Transmission
Type of gearbox
Robotic
Number of gears
7
Drive wheel
Front wheel drive
Brake system
Front brakes
Ventilated disc
Rear brakes
Disc
Performance
Maximum speed
182 km/h
Acceleration (0-100 km/h)
124 sec
Fuel consumption urban
8.70 l
Fuel consumption extra-urban
5.60 l
Fuel consumption combined
6.70 l
Weight
1,637 kg
Full mass
2,220 kg
Fuel tank
50 l
Tires size
205/60/R16,, 215/55/R17,, 225/45/R18
